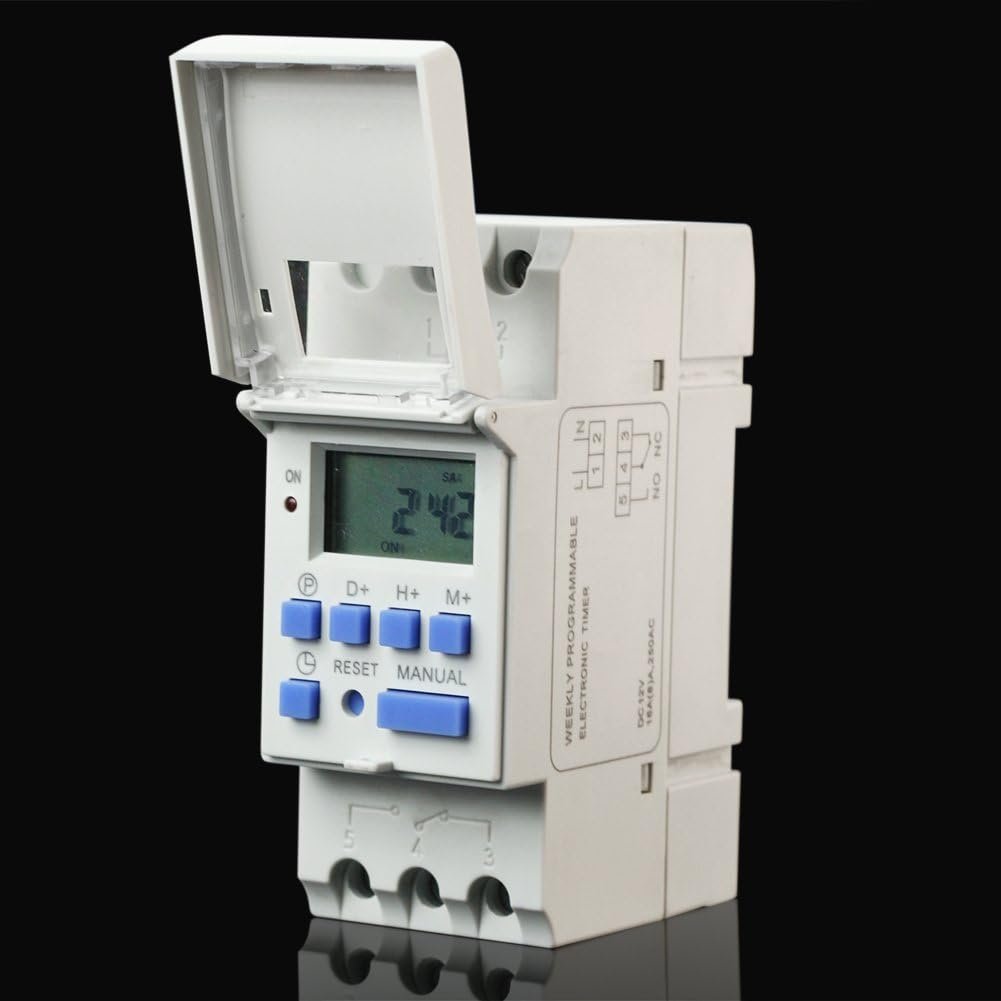

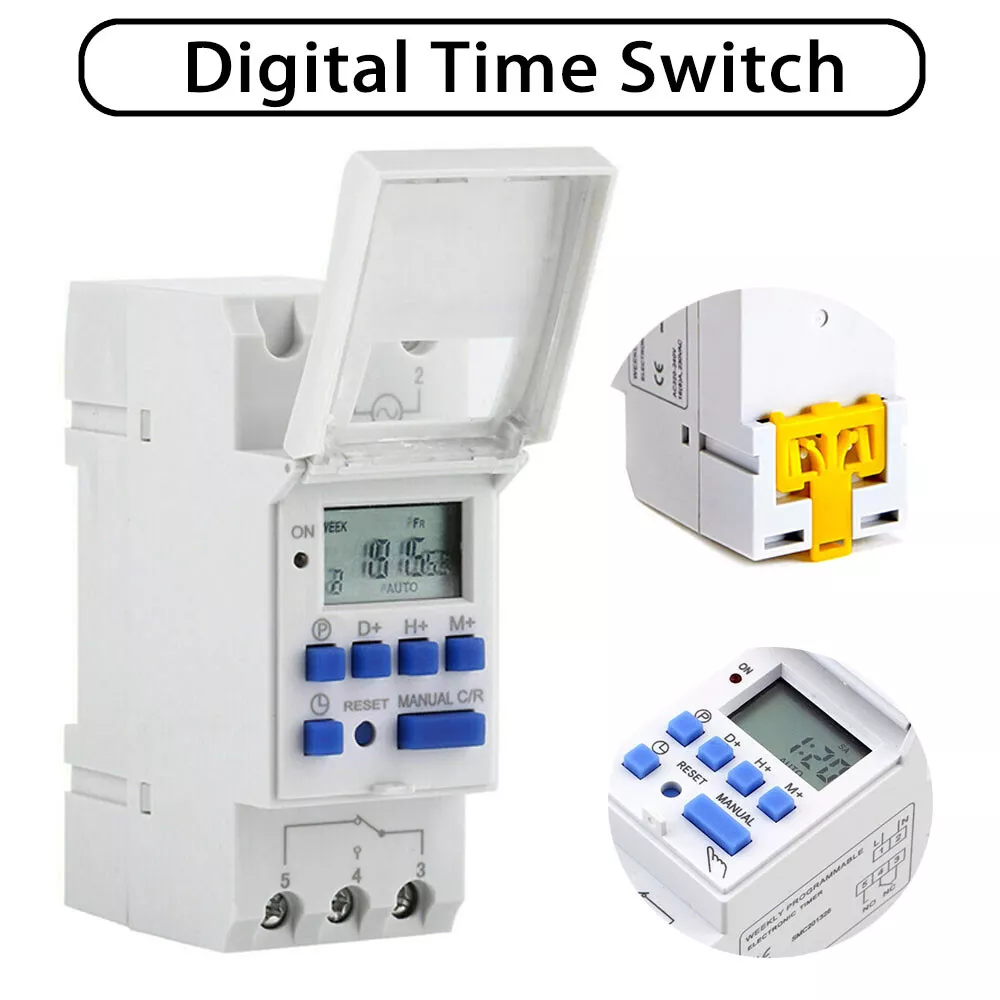

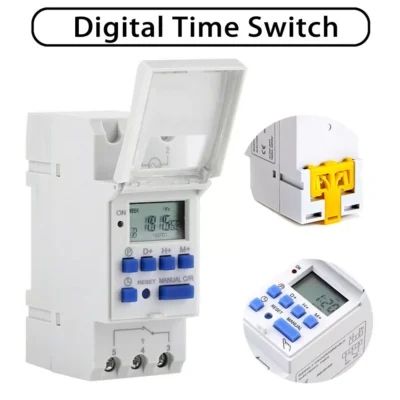

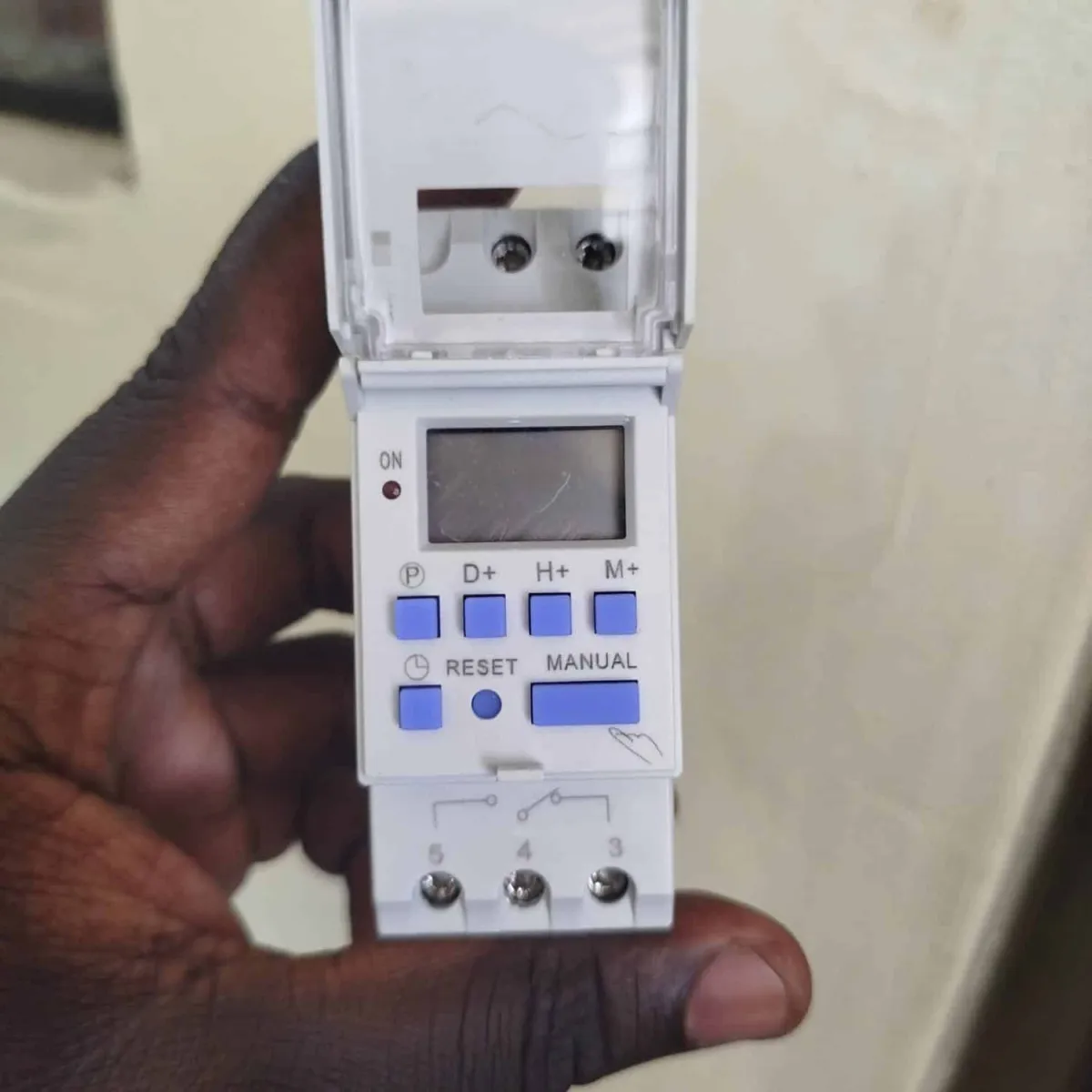

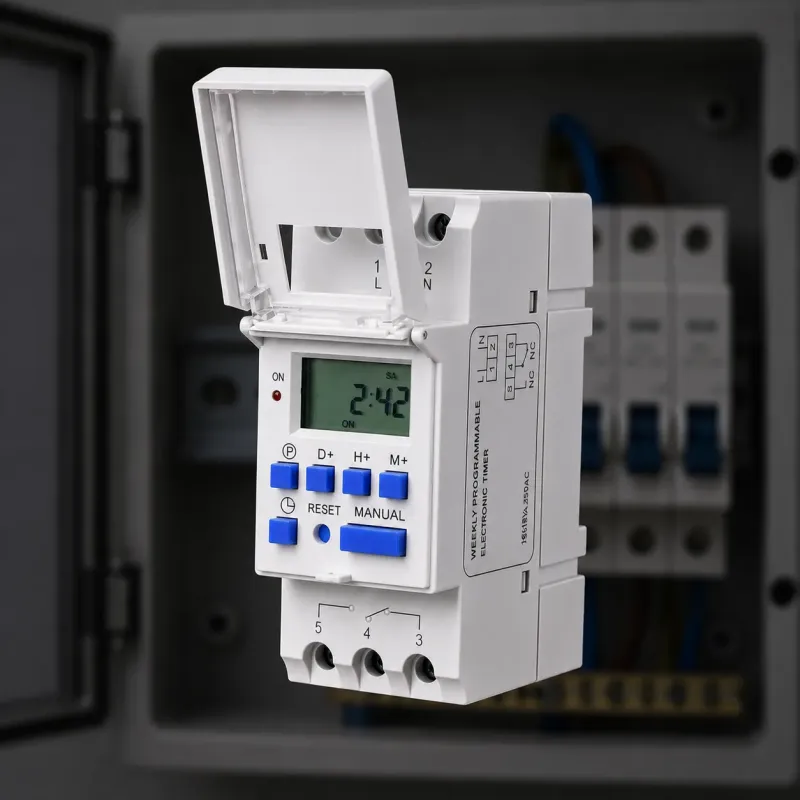

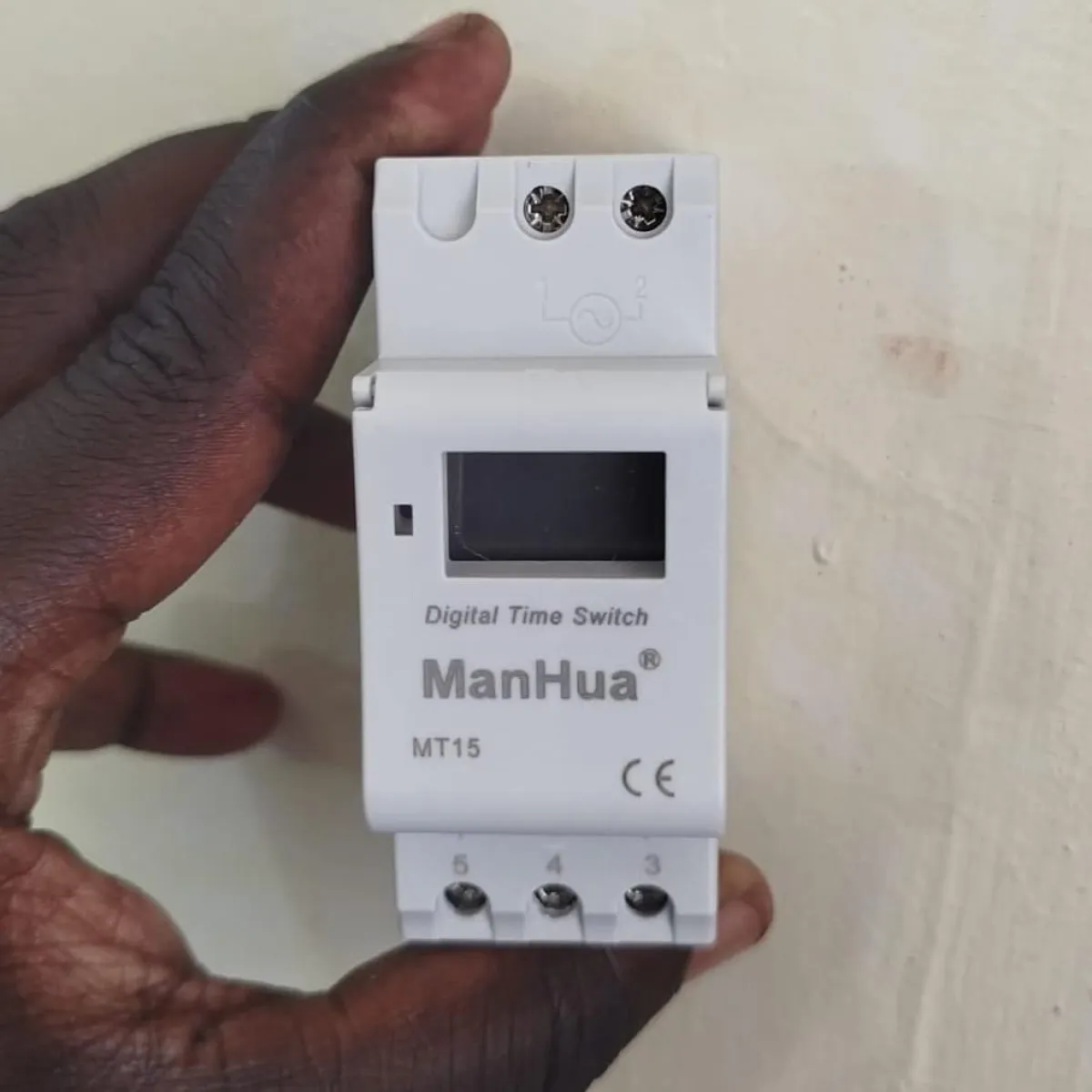

16A ManHua MT15 Dual Control Timer Switch – For Lights, Bells, Fridges & Security Systems
KSh 1,950
ManHua MT15 Digital Timer Switch With Dual Control– 16A Programmable Relay with LCD, Weekly, Daily, and Hourly Automation
The ManHua MT15 Digital Timer Switch with dual control is a powerful and user-friendly programmable relay designed to automate your electrical devices with ease. With a 16A capacity and support for 16 ON/OFF groups per day, you can schedule your appliances hourly, daily, or weekly without needing to manually turn them on or off. This timer is plug-and-play, making it easy to install without the need for an electrician.
Perfect for homes, schools, offices, farms, and factories, this timer switch is ideal for automating lights, school bells, fridges, security systems, irrigation pumps, heaters, and more — saving time, energy, and effort.

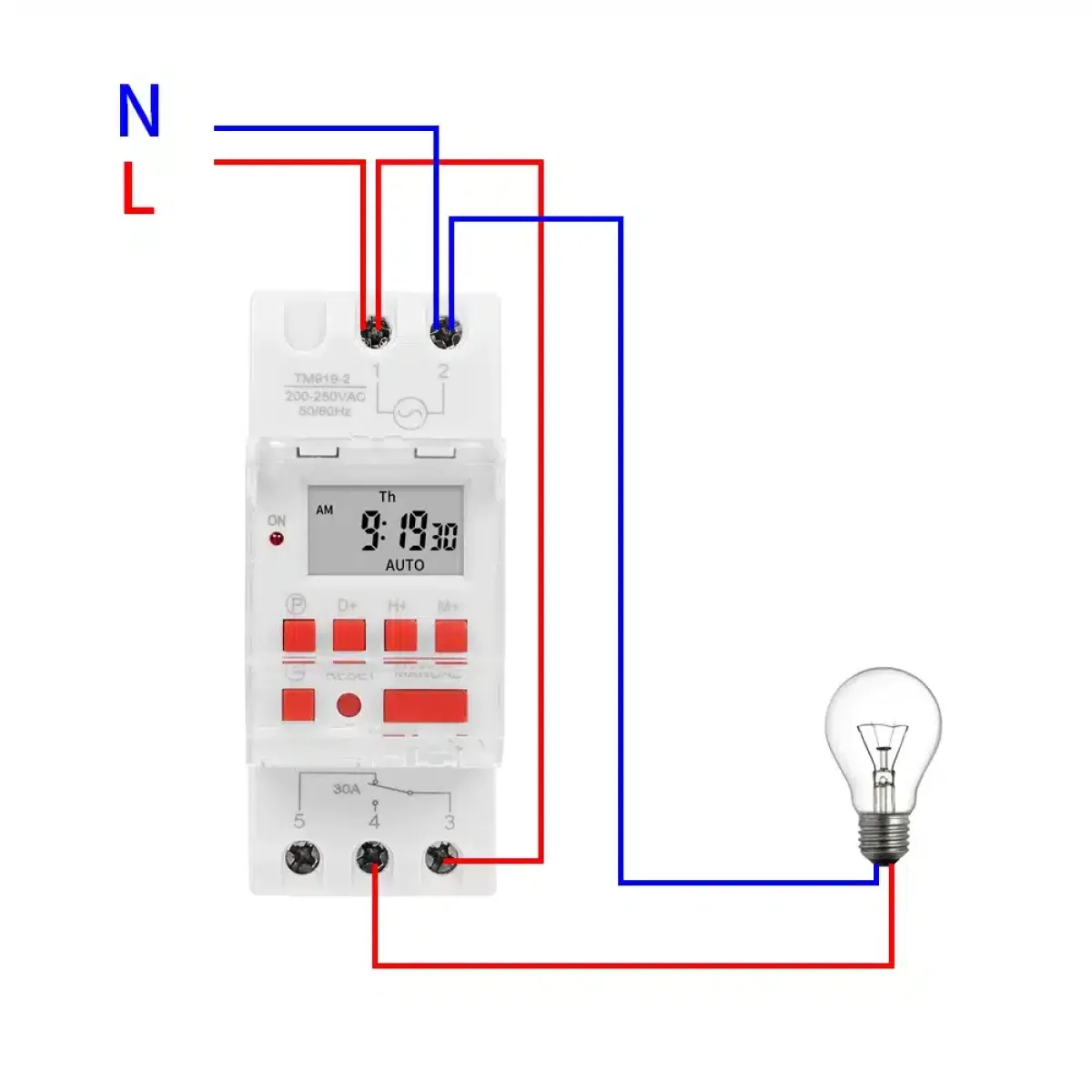

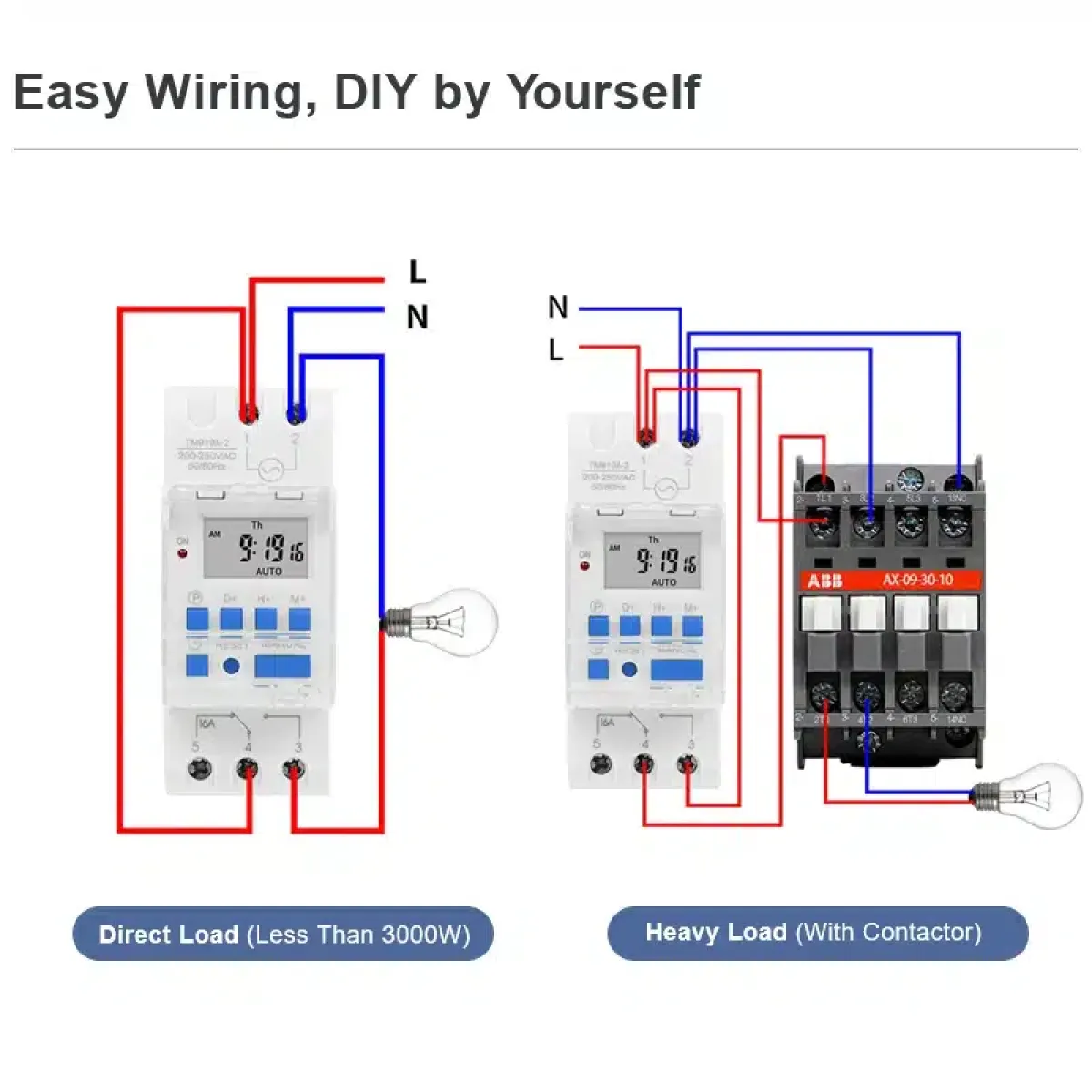

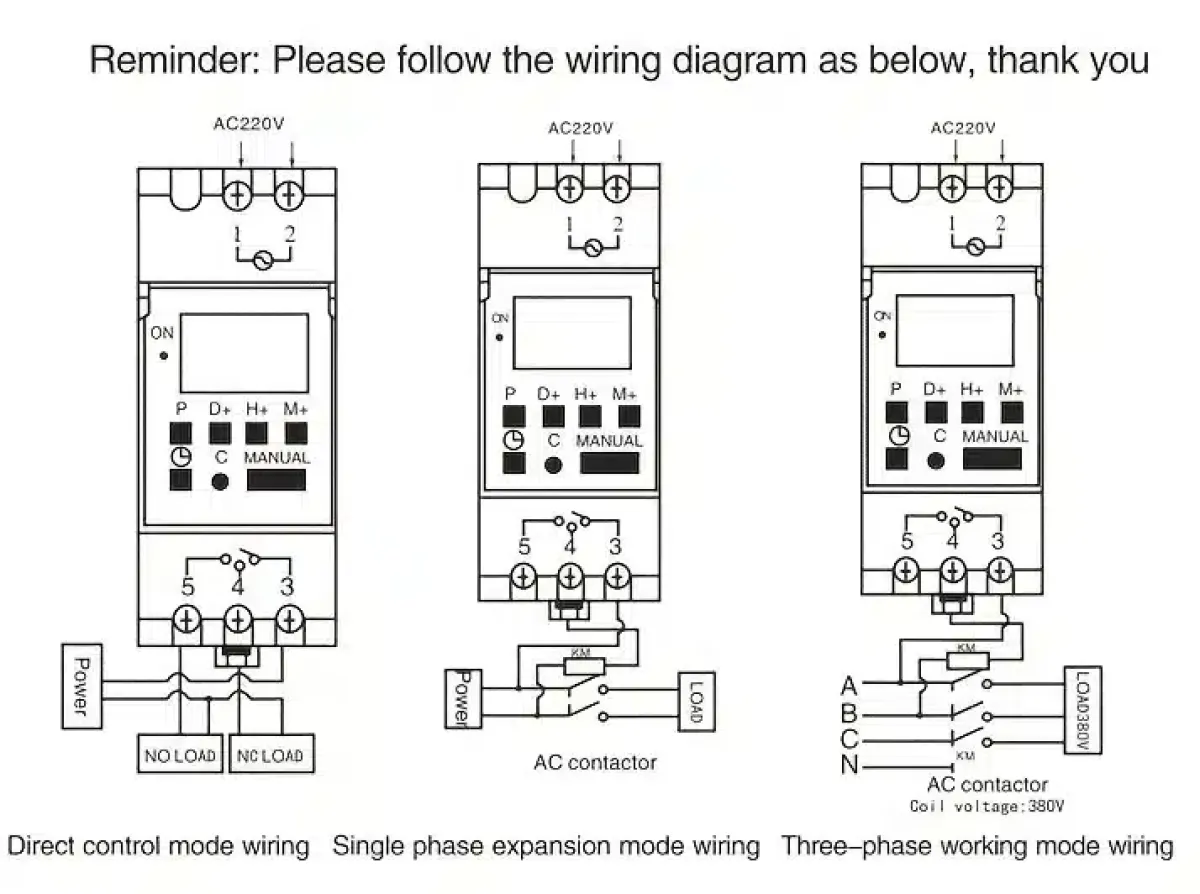

Switching Function & Wiring Explained

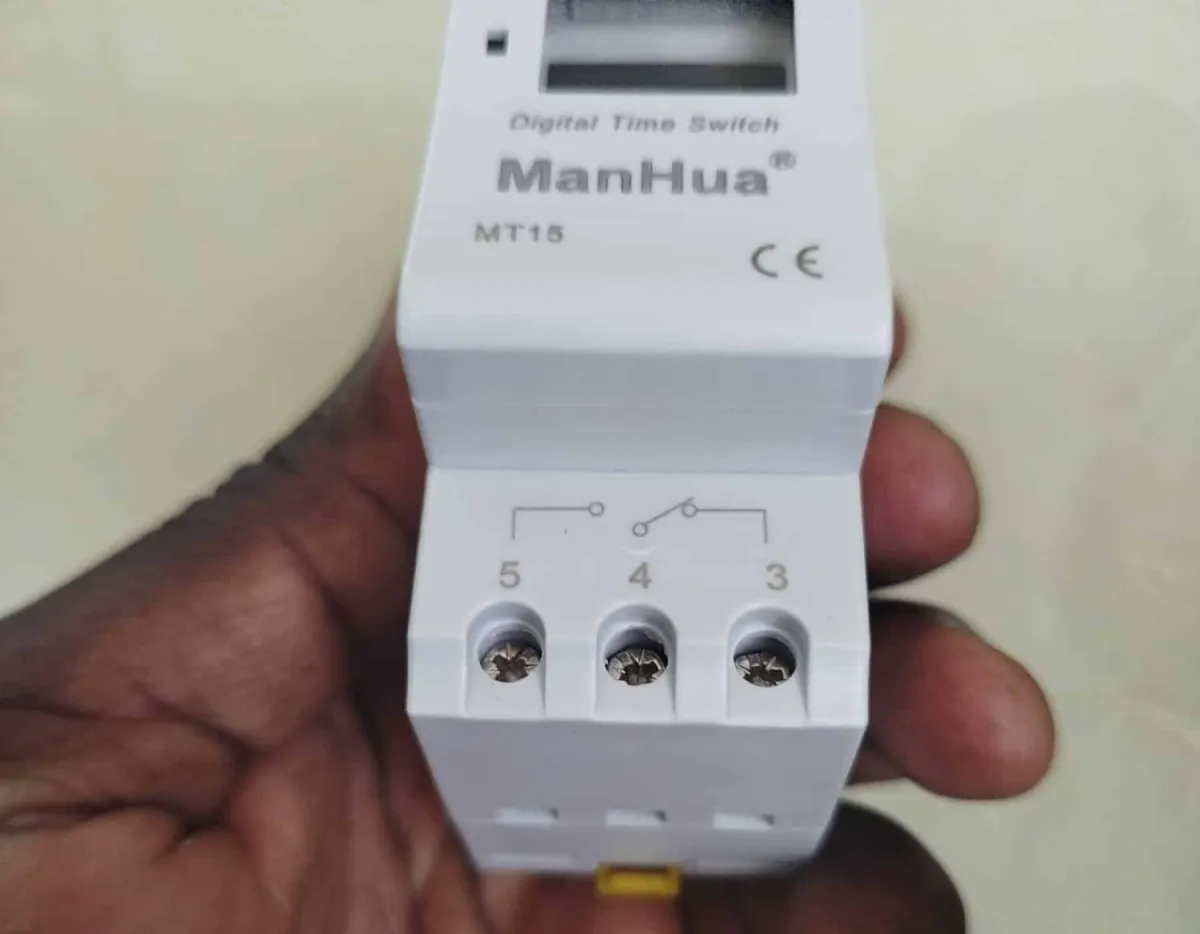

The timer features three key terminals for output control: 3, 4, and 5, which allow flexible wiring to fit different automation needs:
- 3 → 4 (Normally Open – NO): The circuit remains OFF until the timer switches it ON at the set time.
Use Case: Turn on garden lights at dusk and off at dawn automatically. - 3 → 5 (Normally Closed – NC): The circuit remains ON until the timer switches it OFF at the set time.
Use Case: Keep a water pump running continuously but switch it off during non-irrigation hours. - Dual Control (3, 4, and 5): Control two devices independently—one turns ON while the other turns OFF at the same scheduled time.
Use Case: Activate security lights (3→4) while simultaneously turning off a buzzer (3→5) after hours.
Expanded Use Case Examples
- Home Lighting Automation: Automatically switch porch or indoor lights ON at sunset (3→4) and OFF at sunrise. Or turn off a fridge’s defrost heater during specific hours (3→5) to save energy.
- School Bells & Public Announcement Systems: Use the dual control to ring the school bell (3→4) and mute background music or alarms (3→5) at class change times.
- Security Systems: Schedule outdoor floodlights and alarms; activate lights when alarms are off or vice versa, ensuring clear signals to guards or residents.
- Agricultural Applications: Power irrigation pumps or greenhouse lights on a timed schedule, turning pumps off during non-watering hours (3→5) and lights on during dark periods (3→4).
- Refrigeration & HVAC: Control compressors or heaters by turning them ON/OFF on a regular cycle to optimize energy use and prevent freezing or overheating.
- Industrial Equipment: Manage motors, conveyor belts, or machinery during shift hours, automating start and stop without manual intervention.
Key Features
- 16A Capacity — Safe and reliable for most household and commercial electrical appliances.
- Hourly, Daily, and Weekly Programming — Create complex schedules to fit your lifestyle or business.
- 16 ON/OFF Groups Per Day — Fine-tune your automation with multiple cycles.
- Plug and Play Installation — Simple to set up with included instructions; no electrician needed.

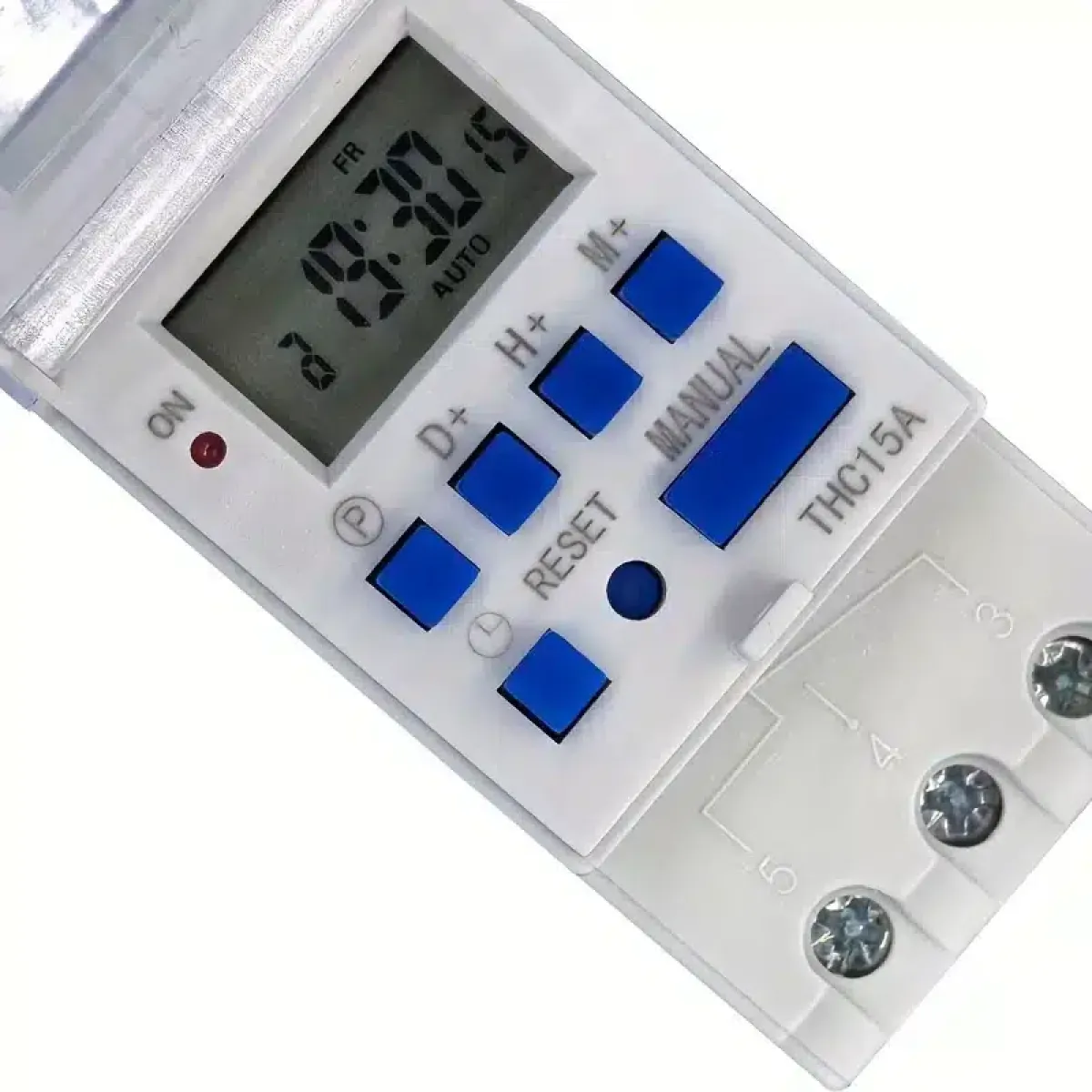

- Large LCD Display — Easily view and adjust schedules.
- Low Power Consumption — Efficient operation using ≤2W.
- Accurate Timing — 1 second/day error correction for dependable performance.
- Dual Control Terminals — Flexibility to control two devices independently.
- Compatible with Various Voltages — Works with ≤48VDC, 110VAC ±15%, and 220VAC ±15%.
Technical Specifications
| Feature | Details |
|---|---|
| Model | ManHua MT15 |
| Max Current | 16A |
| Max Voltage | 220VAC |
| Voltage Rating | ≤48VDC/AC, 110VAC ±15%, 220VAC ±15% |
| Programming Cycles | Up to 16 ON/OFF groups per day |
| Display | LCD |
| Power Consumption | ≤2W |
| Timing Accuracy | 1 second/day error correction |
| Operating Humidity | 35–85% RH |
| Installation | Plug and play, no electrician required |
What’s in the Box?
- 1 × ManHua MT15 Digital Timer Switch
- Instruction Manual (including detailed wiring guide)
FAQs
Q: How many ON/OFF cycles can I program daily?
A: You can program up to 16 ON/OFF cycles per day for precise control.
Q: Can I automate two devices at the same time?
A: Yes, using the dual control terminals 3, 4, and 5, you can switch one device ON while turning another OFF.
Q: Is it difficult to install?
A: No, it’s designed for plug-and-play installation with easy-to-follow instructions—no electrician needed.
Q: What kind of appliances can I use it for?
A: Suitable for lighting, school bells, fridges, pumps, security systems, heaters, and more.
Q: How accurate is the timer?
A: The timer has 1-second per day error correction ensuring your schedule stays on time.
