TOMZN TOQ3-125 125 Amp 230/400 Volt Automatic Transfer Switch | Reliable Generator/Inverter ATS
Original price was: KSh 10,000.KSh 7,800Current price is: KSh 7,800.
Place Your Order
Fill in your details to place your order — no payment needed now.

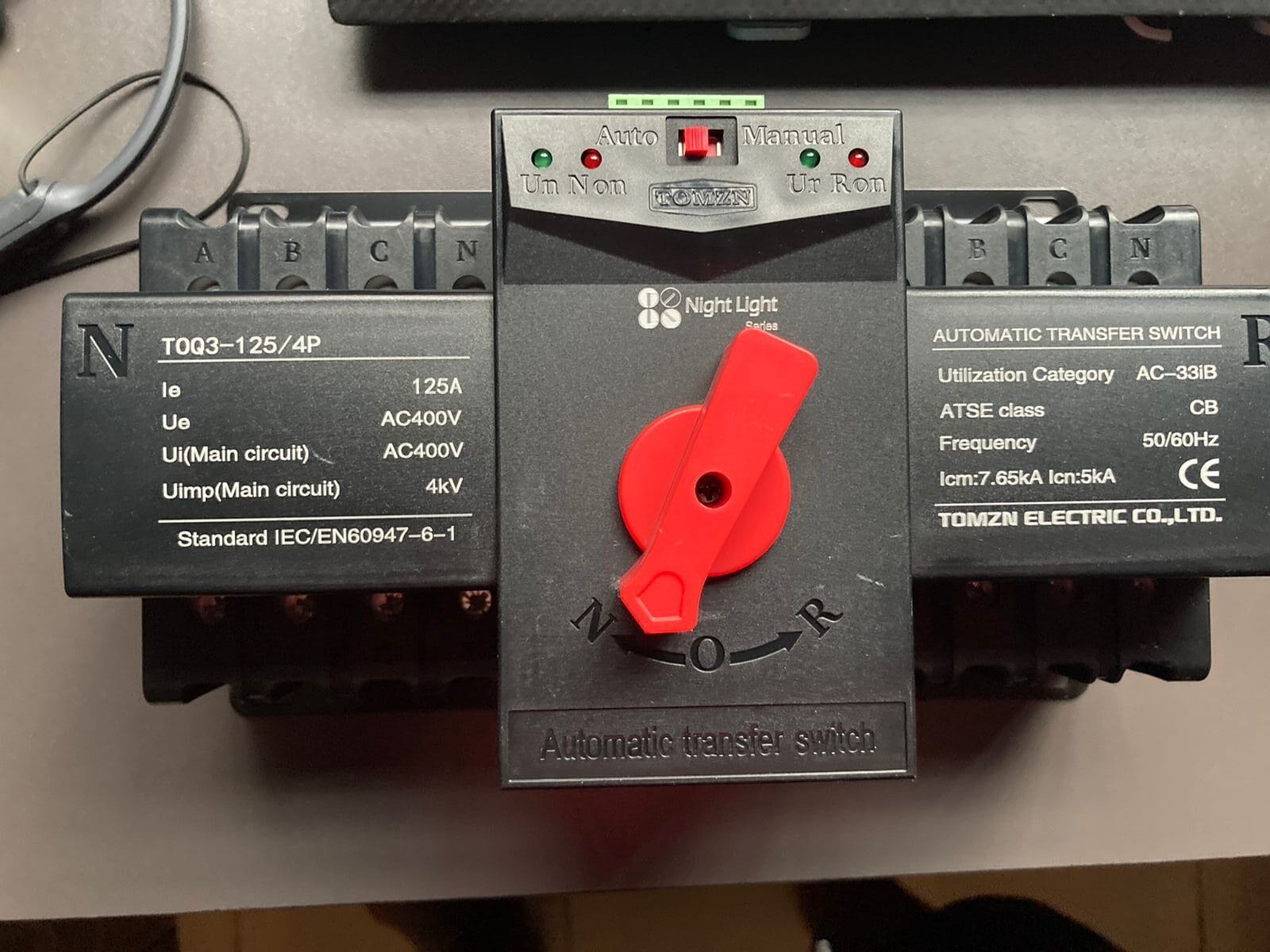

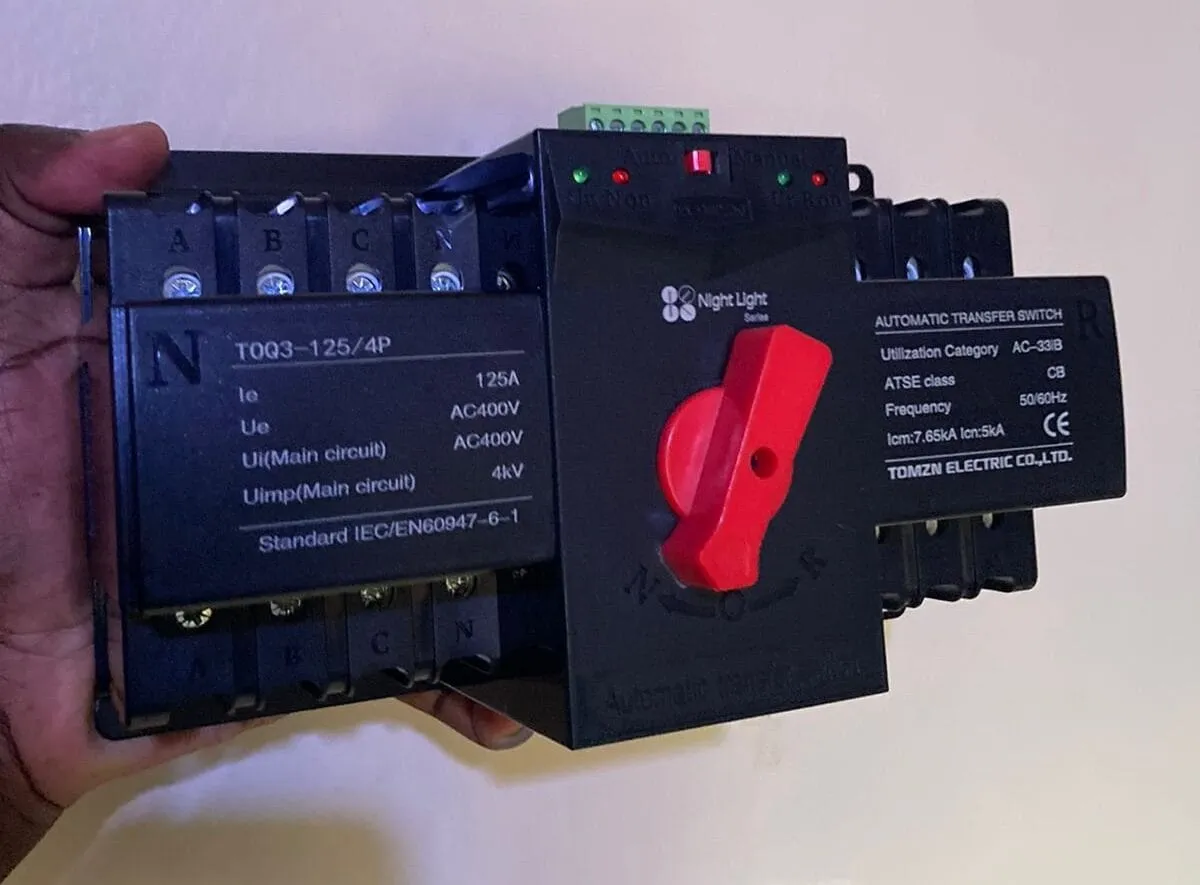

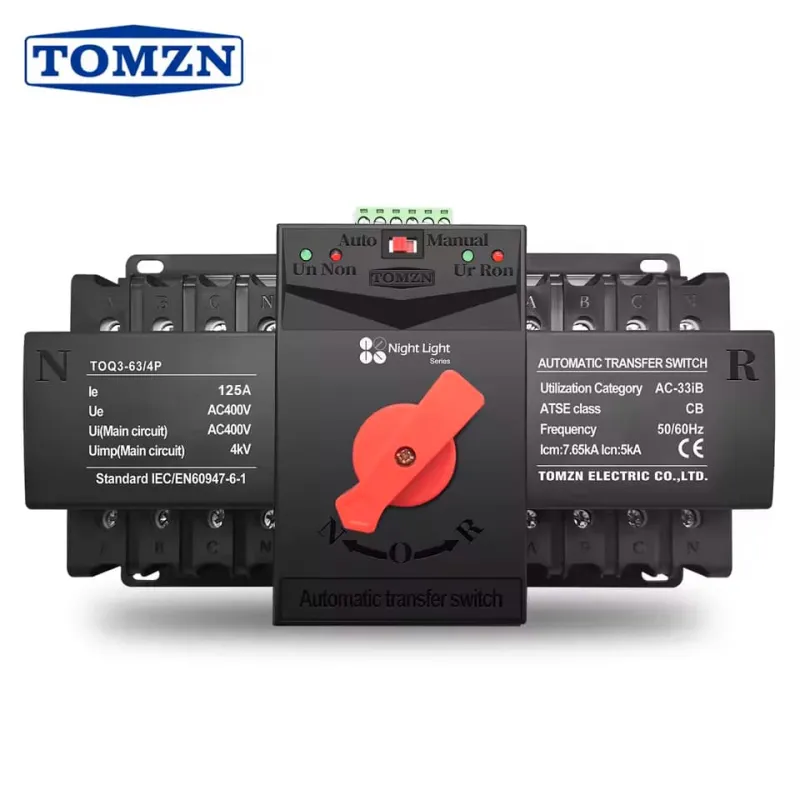

TOMZN T0Q3-125 Automatic Transfer Switch (125A, 4-Pole)

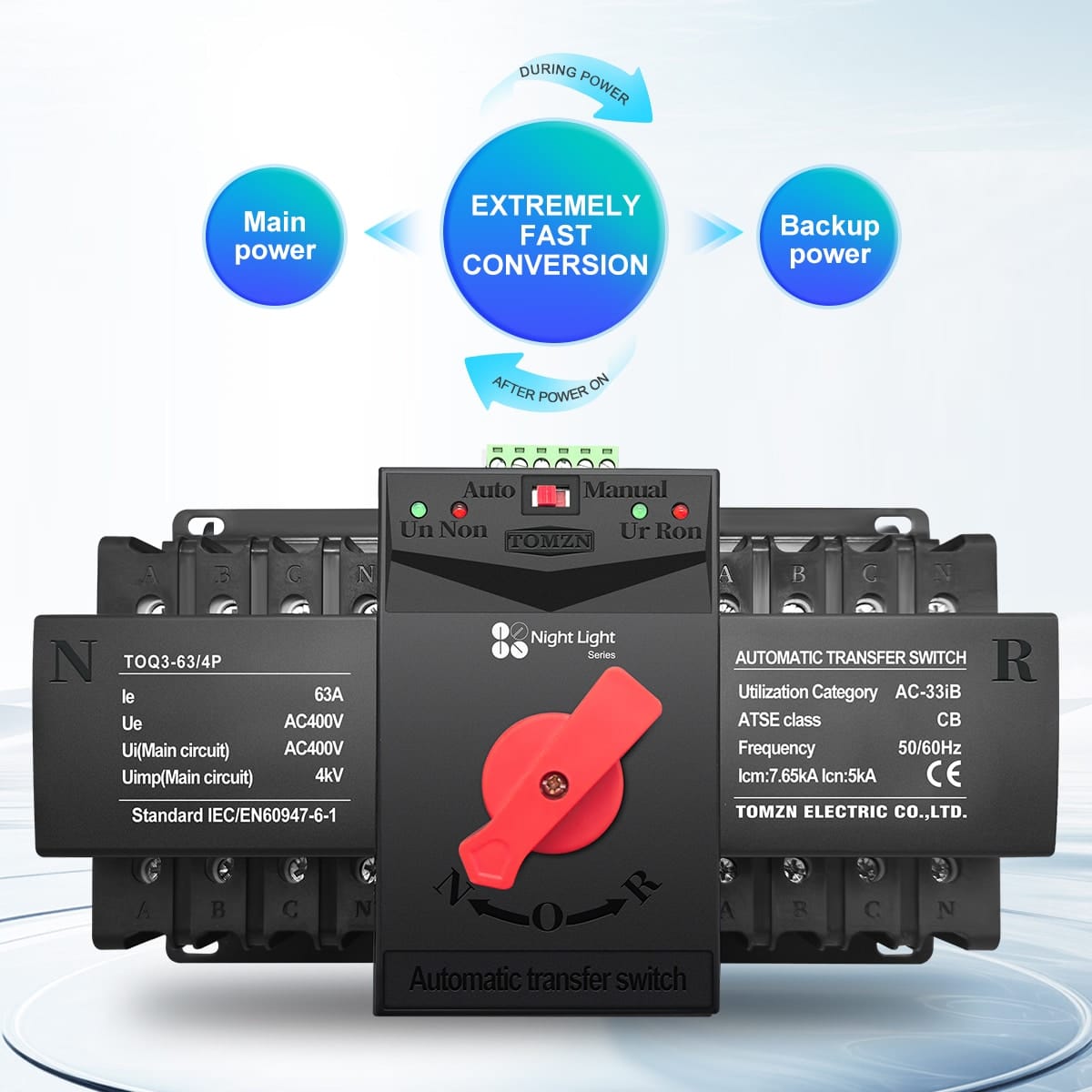

The TOMZN TOQ3-125 is a 125-amp automatic transfer switch (ATS) that automatically switches power between your main supply (KPLC/grid) and a backup source (generator or inverter).
When the main power fails, it automatically transfers your load to the backup source in milliseconds — ensuring your lights, fridge, or water pump keep running smoothly.
When grid power returns, it switches back to normal supply without needing manual control.
This model is designed for three-phase 4-wire (or single-phase) AC systems, operating at 230V / 400V, making it ideal for both home and commercial installations.
⚙️ Key Features
| Feature | What It Does |
|---|---|
| Automatic Power Switching | Instantly transfers between mains and backup (generator/inverter) when power fails. |
| Fast Response (under 4 seconds) | Keeps your lights or pumps on with minimal interruption. |
| Manual & Automatic Modes | Choose auto switching or manual control for maintenance or testing. |
| Heavy-Duty Build | Copper contact points and motor for reliable 125A current handling. |

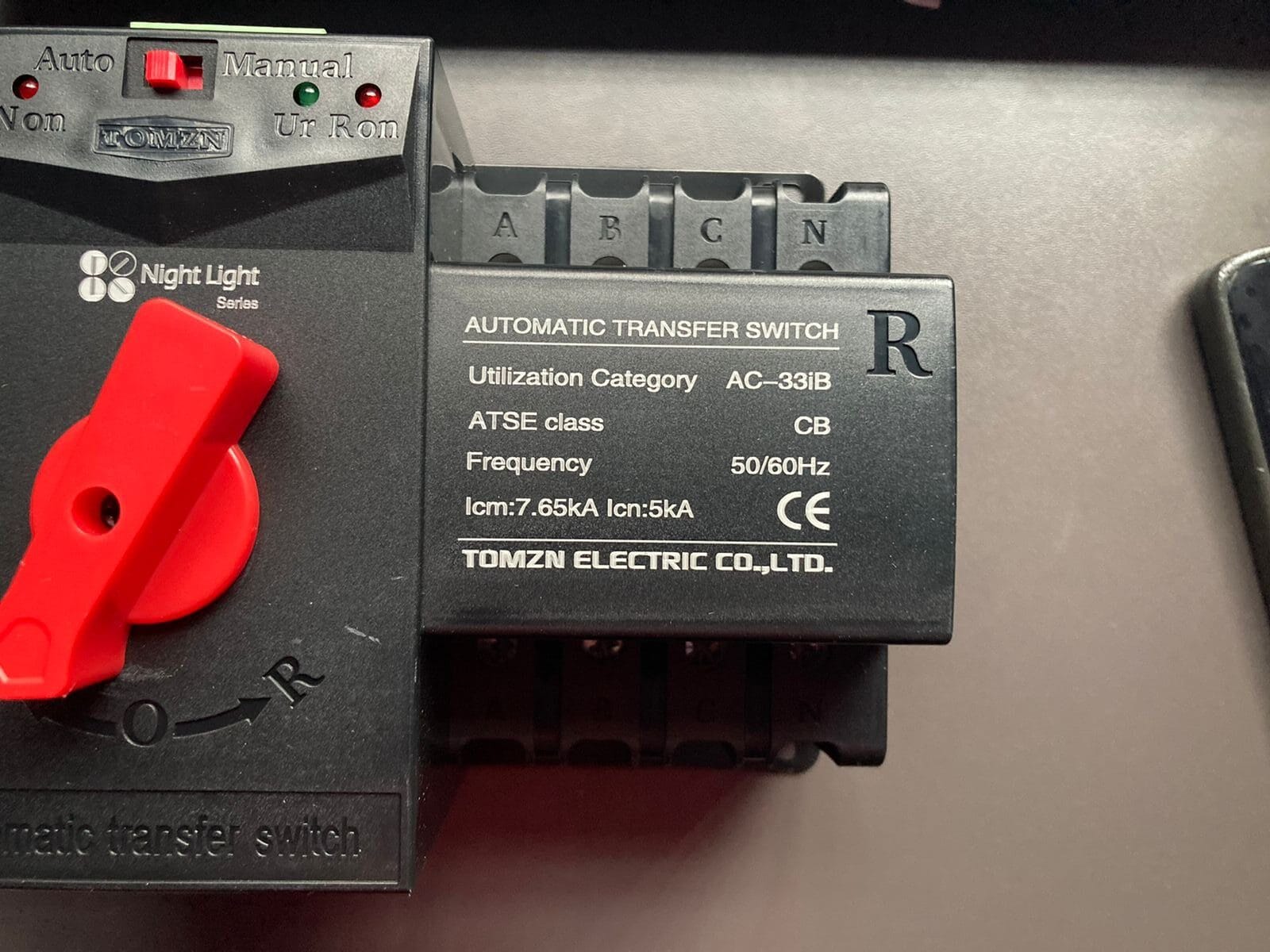

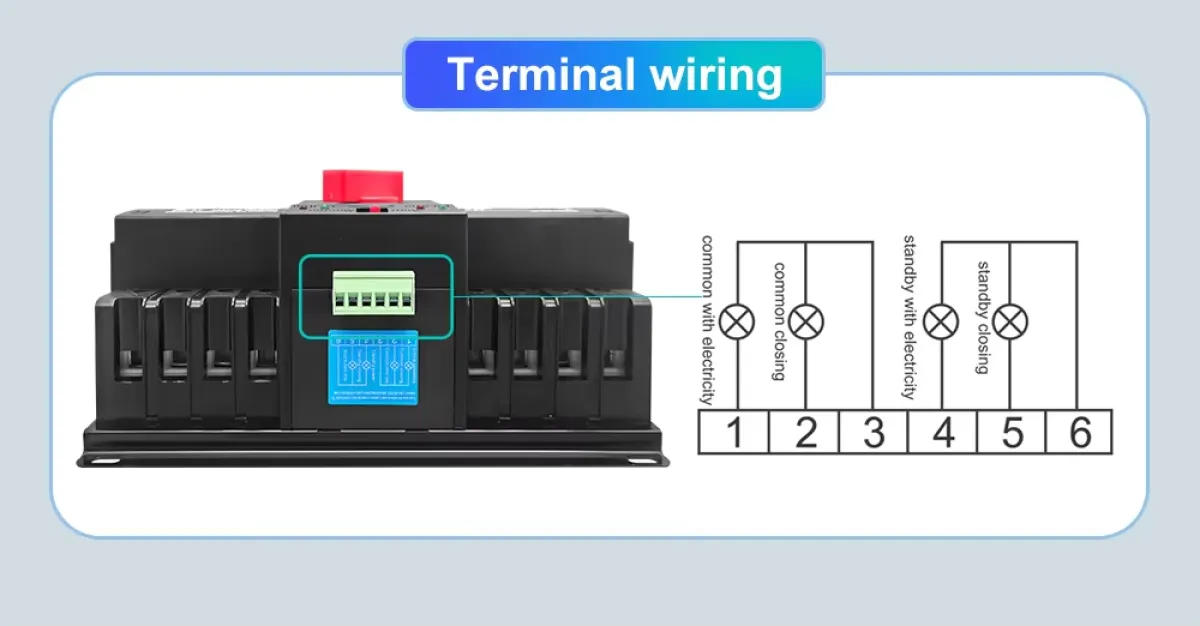

| Status Indicators | Clear LED lights show which power source is active. |
| Wide Compatibility | Works perfectly with generators, solar inverters, or two KPLC lines. |
| Compliance | Meets IEC 60947-6-1 safety standards for industrial reliability. |
📋 Technical Specifications
| Parameter | Details |
|---|---|

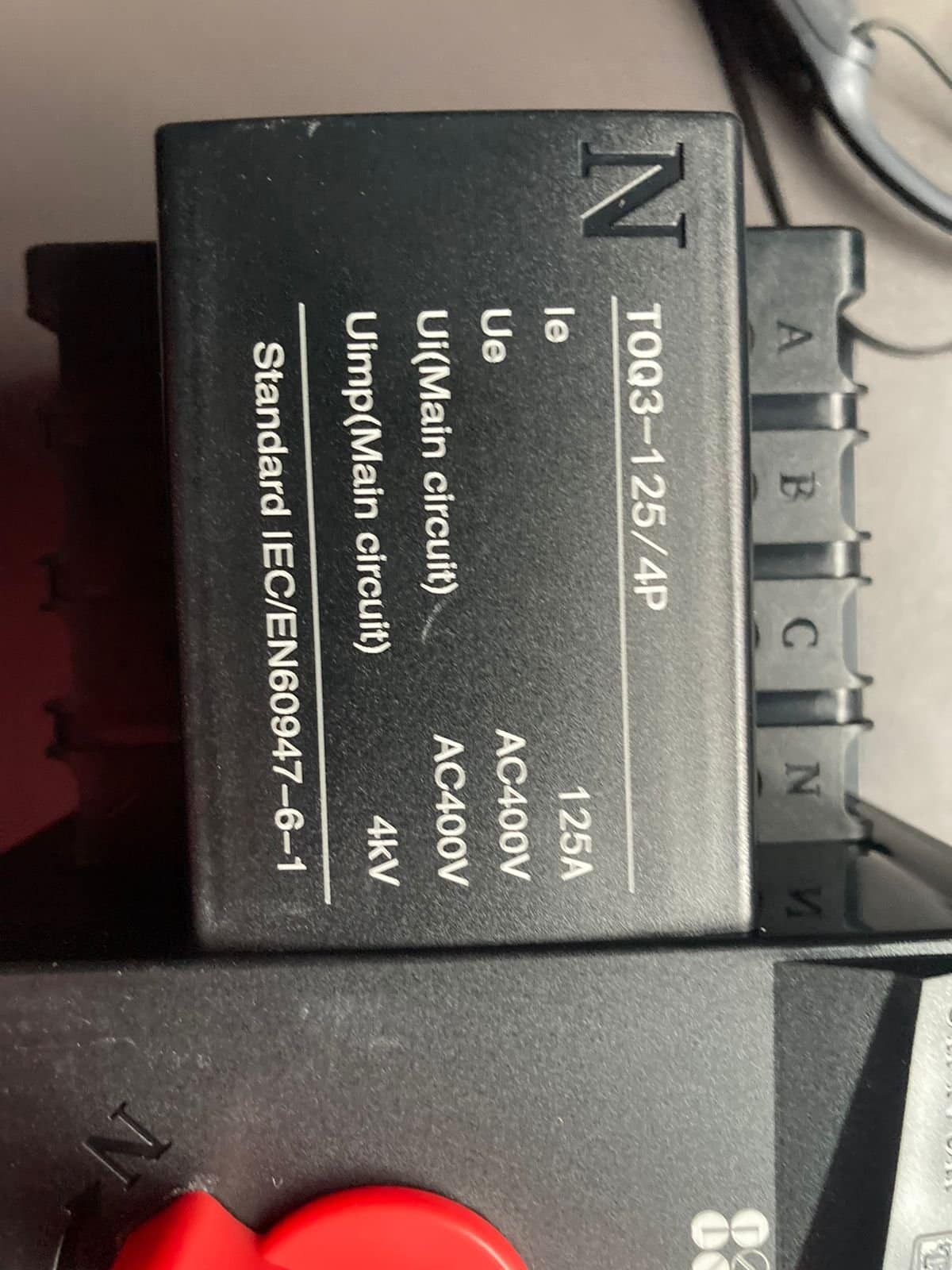

| Model | T0Q3-125 |
| Rated Current | 125 A |
| Poles | 4 (Three-phase / Single-phase compatible) |
| Rated Voltage | 230 V AC (1-phase) / 400 V AC (3-phase) |
| Frequency | 50 / 60 Hz |
| Utilization Category | AC-33B |
| Switching Time | ≤ 4 seconds |
| Short-Circuit Capacity (Peak) | 9.18 kA |
| Short-Circuit Breaking Capacity | 6 kA / 4.5 kA |
| Mount Type | Panel / Surface mount |

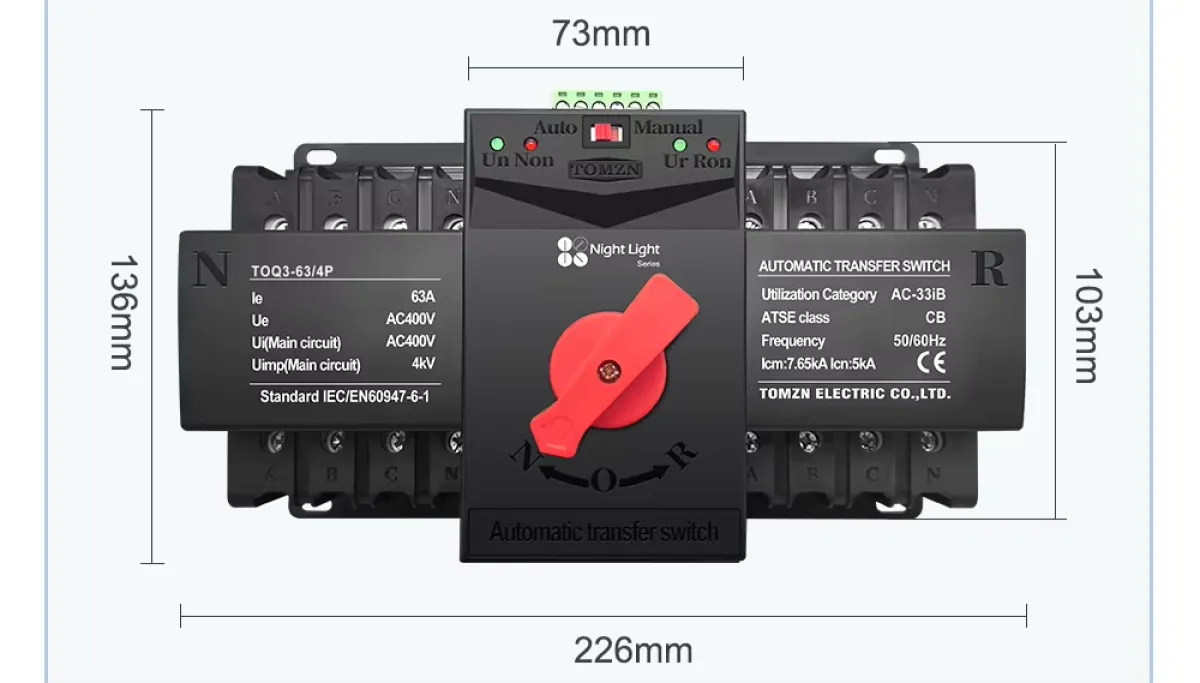

| Dimensions (approx.) | 226 mm × 136 mm × 103 mm |
| Operation | Automatic or Manual |
| Protection Type | External breakers/fuses required (not built-in) |
🔌 How It Works

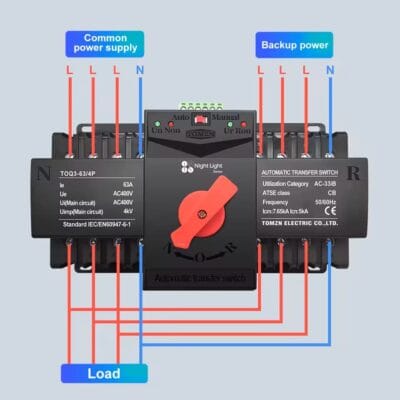

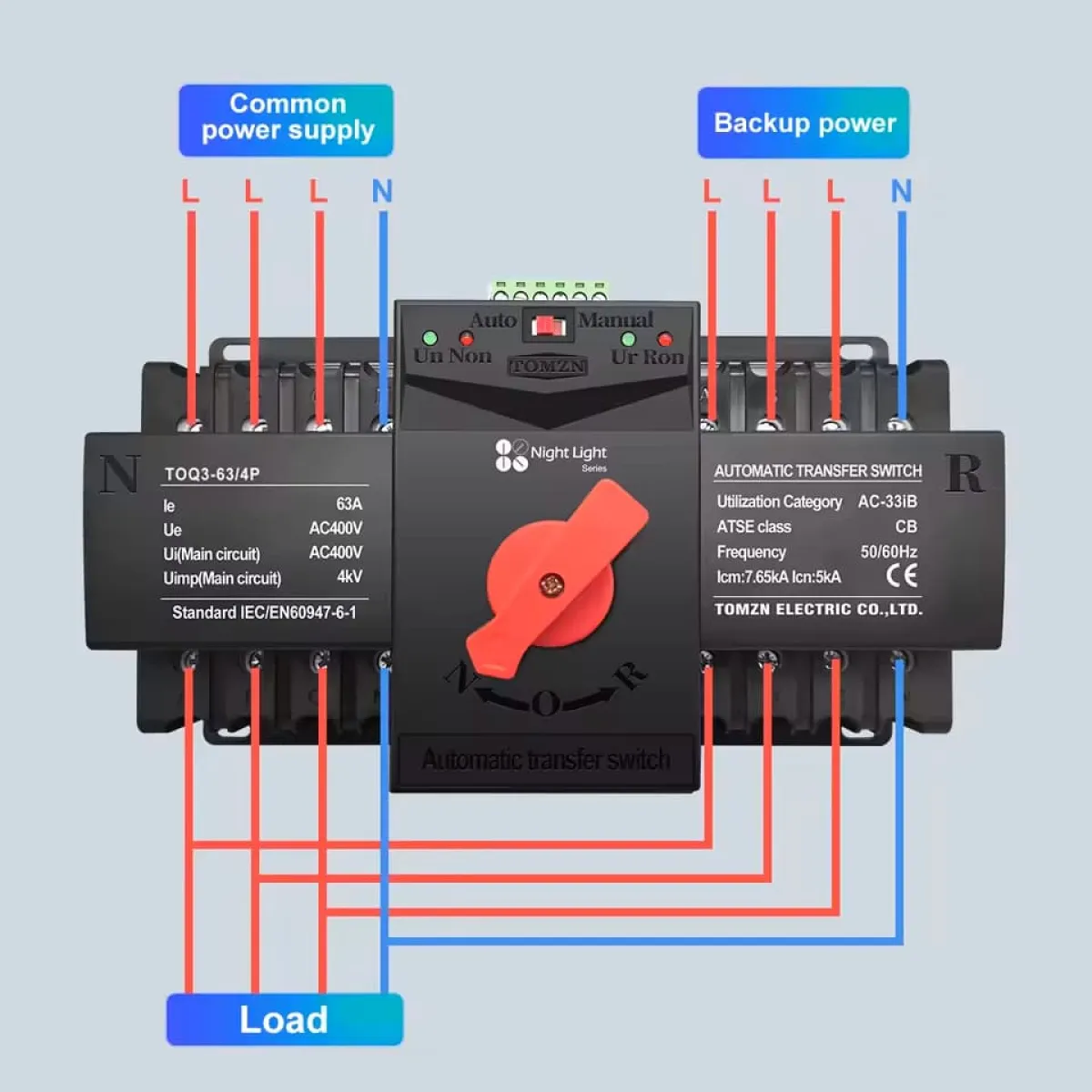

- Connect both Normal Power (KPLC) and Backup Power (Generator/Inverter) inputs.
- Set the switch to Automatic Mode.
- When KPLC power cuts off, it automatically connects your load to the backup source.
- When KPLC returns, it automatically transfers back.
- For maintenance or testing, switch to Manual Mode and control the source yourself.
🏠 Common Uses in Kenya
- Residential Homes: Keep lights, TVs, and fridges on during power cuts.
- Shops & Supermarkets: Maintain power to freezers and billing systems.
- Water Pumps & Boreholes: Prevent interruptions during load-shedding.
- Office Buildings: Ensure computers, routers, and servers remain powered.
- Farms & Industrial Sites: Reliable backup for motors and control systems.
Simple Explanation
Think of the T0Q3-125 as a smart switch that watches your main and backup power lines.
When KPLC power goes off, it automatically moves your load to the generator or inverter — and when the grid returns, it switches back.
This happens in seconds, without you having to do anything.
It’s like having a person standing by your power system 24/7, ready to switch power the moment a blackout happens.
